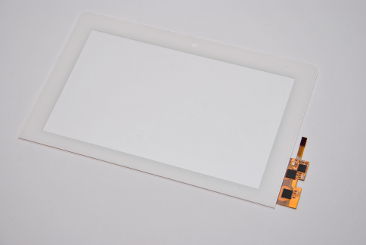

Multi-Touch Projected Capacitive Touch
Amwell introduces its new Multi-Touch Projected Capacitive Touch technology. Our PCT sensors are designed, manufactured, and supported in the Guangzhou China factory. Our touch screens provide extreme durability and superior optics. We offer a custom made product line from 4.3” – 15” to meet your application requirements. Our PCT is the perfect choice for your Medical, Instrumentation or Industrial application.
Projected Capacitive Sensor Constructions, including:
- Glass/Film/Film ( Cover glass + film/film sensor)
- FG2 (PET + Double Sided ITO Glass sensor)
- GG2 (Cover glass + Double Sided ITO Glass sensor)
- OGS (One Glass Solution)
Specifications
| Working voltage: 3.3V | Working current: 2.5mA-10mA according to IC |
| Surface Hardness: 3H-6H according to construction. | Connector type: I2C，USB |
| Storage Temperature: -30°C~+80°C ＜60%RH | Operation Temperature: -30°C~+80°C ＜60%RH |
| Transparency: ≥86% according to construction. | Operation Force: less than 20g |
| Surface treatment: anti-fingerprint, anti-oil | Cover Glass Thickness: 0.7mm,1.1mm,2mm |
| TP and IC connection: COF or COB | Operation Expectance: > 100,000,000 times |
| Anti-jamming capability (machine): contact discharge ≥8KV, air discharge ≥15KV | Multi-Touch: up to 10 fingers |
